ir wafer

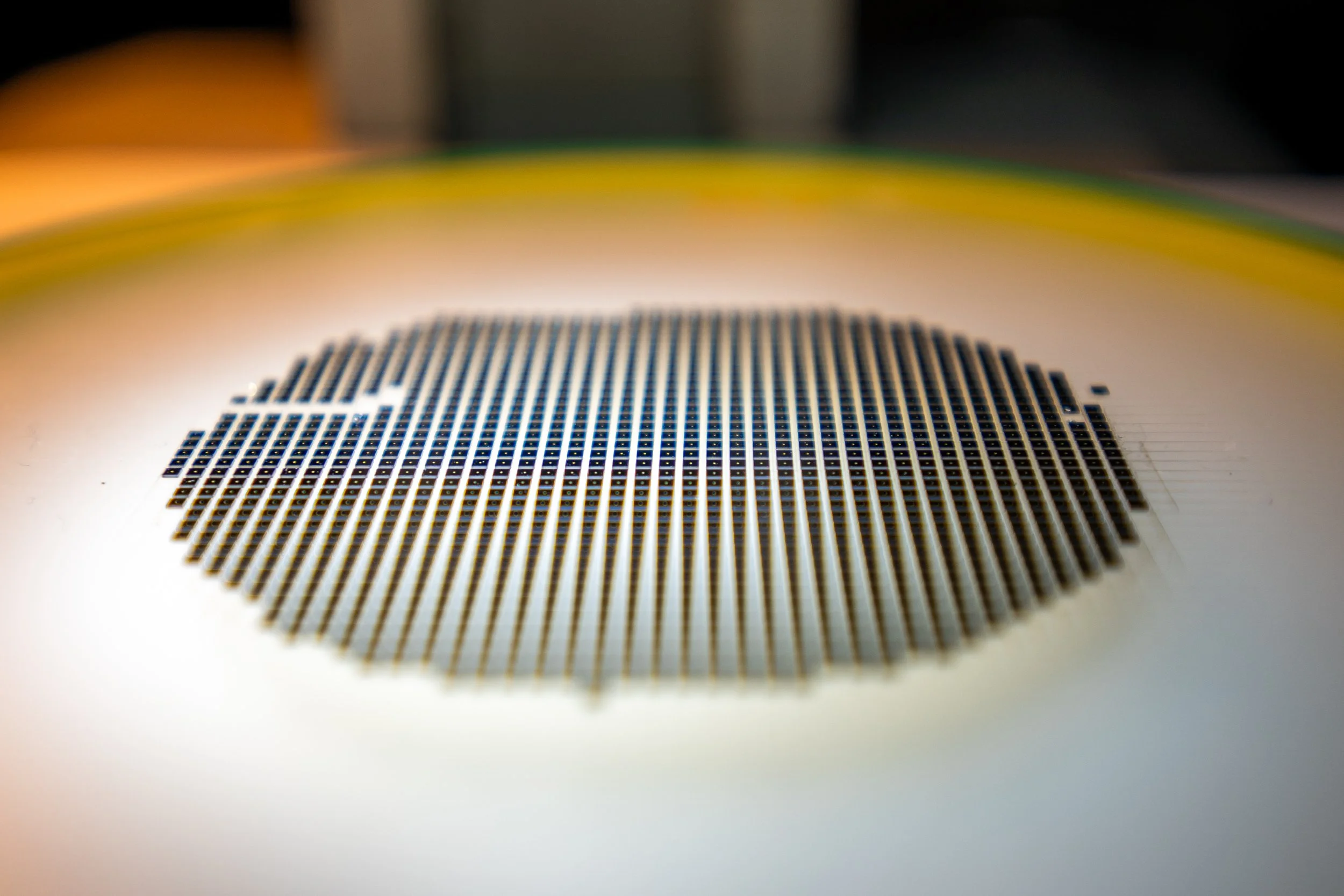

2inch infrared wafer

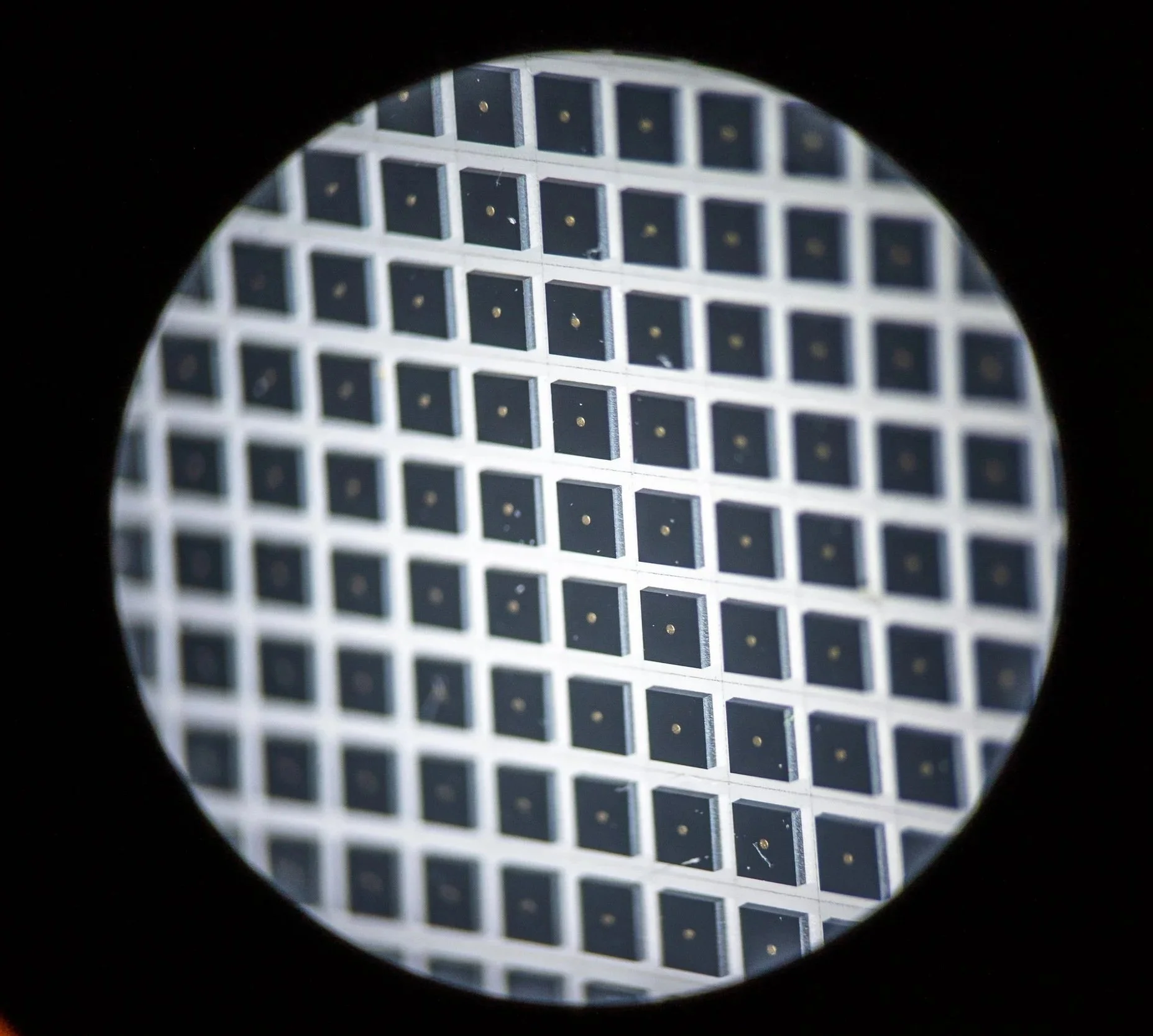

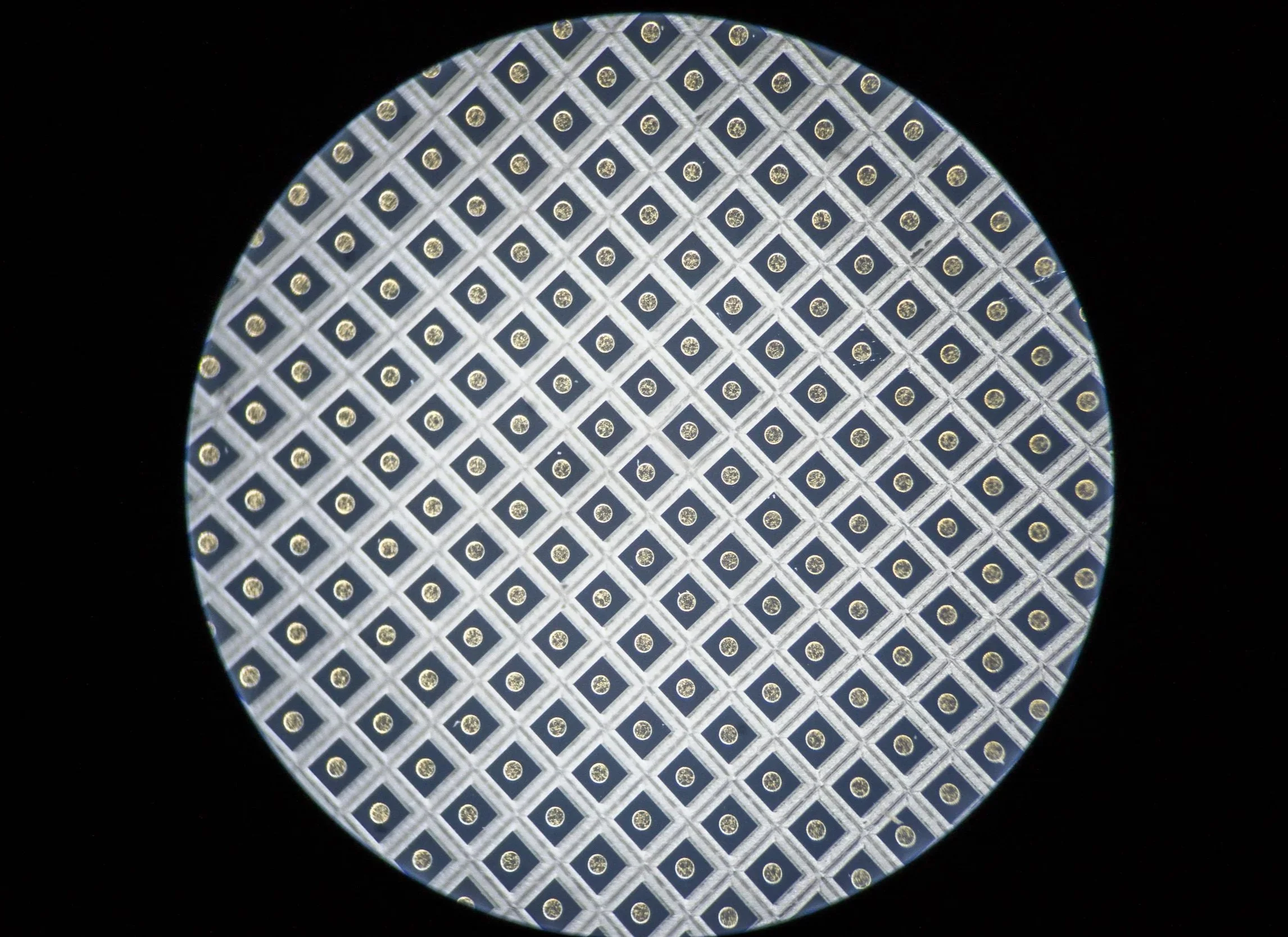

IR LED Wafer

MANULED IR LED Bare Dies Are Made in the USA, Helping You Avoid Semicondcutor Import Tariffs

Custom orders are also welcome—please contact us to discuss your specific needs.

IR LED Bare Die Chips Specifications
Part Number Characteristics Dimensions Top-Side Metallization Pricing Visualizer
λp [nm] (If=20mA) Po [mW] (If=20mA) Vf [V] (If=20mA) Vr [V] (If=10µA) Absolute Max Rating* [mA] Chip Size** [µm] Chip Thickness [µm / Mils] Top Contact (Cathode) Bottom Contact (Anode) Unit Price (<1M) Unit Price (≥1M)
IR8508501.0 - 2.21.0 - 1.8580Customizable254±50µm
10±2 Mils		N Cathode14000 Å MIN. Au.8000 Å MIN. Au.Starting from $0.06Starting from $0.035
IR8608601.0 - 2.21.0 - 1.8580Customizable254±50µm
10±2 Mils		N Cathode14000 Å MIN. Au.8000 Å MIN. Au.Starting from $0.06Starting from $0.035
IR8708701.0 - 2.21.0 - 1.8580Customizable254±50µm
10±2 Mils		N Cathode14000 Å MIN. Au.8000 Å MIN. Au.Starting from $0.06Starting from $0.035
IR8808801.0 - 2.21.0 - 1.8580Customizable254±50µm
10±2 Mils		N Cathode14000 Å MIN. Au.8000 Å MIN. Au.Starting from $0.06Starting from $0.035
IR8908901.0 - 2.21.0 - 1.8580Customizable254±50µm
10±2 Mils		N Cathode14000 Å MIN. Au.8000 Å MIN. Au.Starting from $0.06Starting from $0.035
IR9009001.0 - 2.21.0 - 1.6580Customizable254±50µm
10±2 Mils		N Cathode14000 Å MIN. Au.8000 Å MIN. Au.Starting from $0.06Starting from $0.035
IR9109101.0 - 2.21.0 - 1.6580Customizable254±50µm
10±2 Mils		N Cathode14000 Å MIN. Au.8000 Å MIN. Au.Starting from $0.06Starting from $0.035
IR9209201.0 - 2.21.0 - 1.6580Customizable254±50µm
10±2 Mils		N Cathode14000 Å MIN. Au.8000 Å MIN. Au.Starting from $0.06Starting from $0.035
IR9309301.0 - 2.21.0 - 1.6580Customizable254±50µm
10±2 Mils		N Cathode14000 Å MIN. Au.8000 Å MIN. Au.Starting from $0.06Starting from $0.035
*: Maximum mA is 100 **: Normally 254µm - 1270µm (10-50 Mils) Example Use Cases: 880 - 910 = Medical Devices 850 = Infrared camera 930 = TV Remote
